Description

I. iMAS923TH Flow Meter Specification

1. LoRaWAN module : iM980A (iMAS923TH) (NBTC register id : A59011-18-1627) (FCC:Q9B409810)

2. Frequency : AS923 (default: 923.2, 923.4 Mhz) (Extendable 920~925 MHz)

3. TX output power: Typical 14 dBm (Max. 18.5 dBm) (Licensed Max. EIRP 22 dBm)

4. Standard met: NBTC TS.1033-2560, EN 60950-1 (Processing)

5. Temperature / Humidity : -40 to 75 Degree C / 0 – 90 %

6. Size : 113 x 80 x 60 c.m.

7. IP rating : IP68

8. Body material : Polycarbonate

9. Compatibility : LoRaWAN 1.0.2, Thailand CAT network, etc.

10. DevEUI : IEEE Device EUI Registered

11. Power supply : 3.7 Voltage (Batt. size : 18650 1 slot, 14550 1 slot) Replaceable

12. Input: Digital 4 channels

13. Input: Analog 1 channel

14. Cable gland : PG9 or Equivalence

15. External passive antenna in case (U.FL / IPEX / SMA) or Equivalence

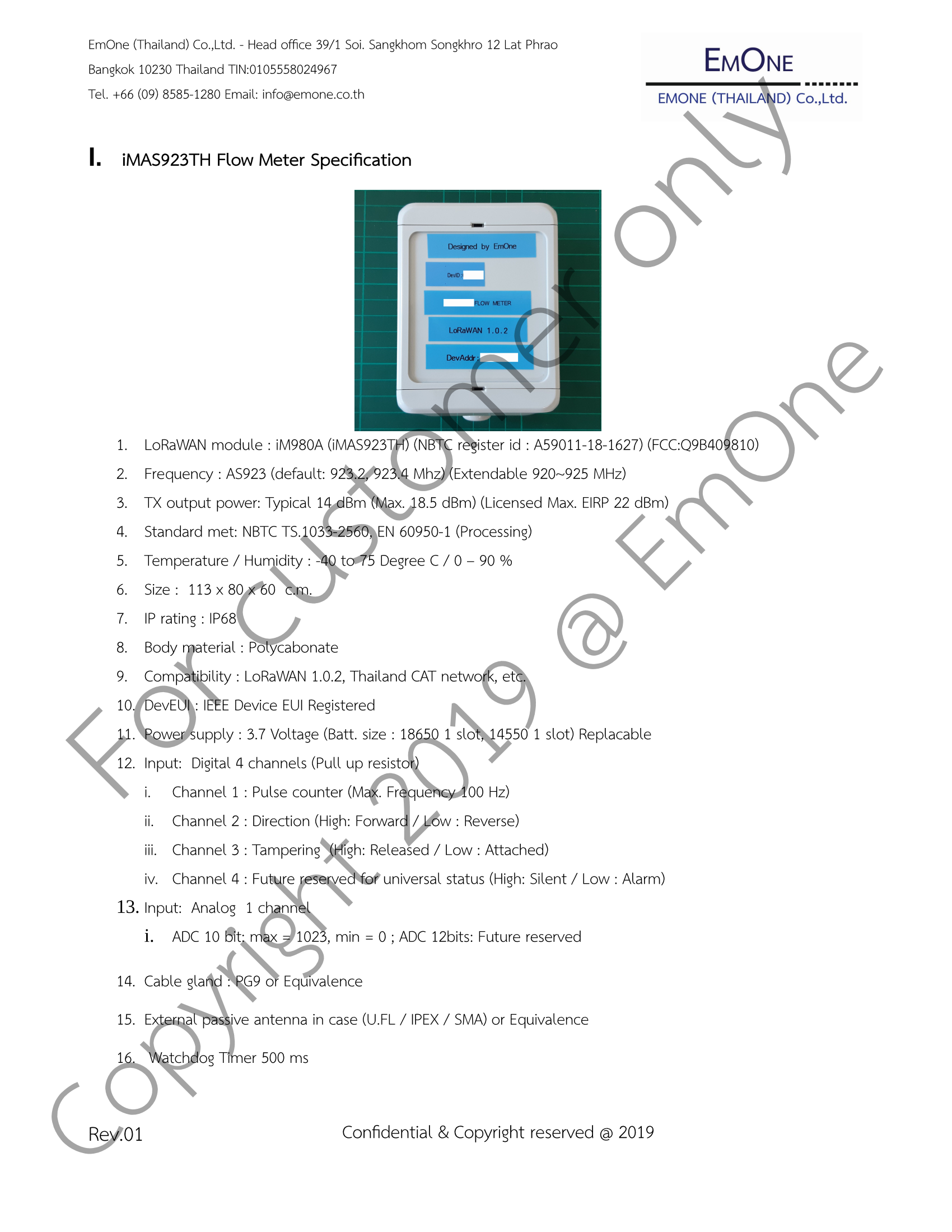

Datasheet : iMAS923TH-FM-001
